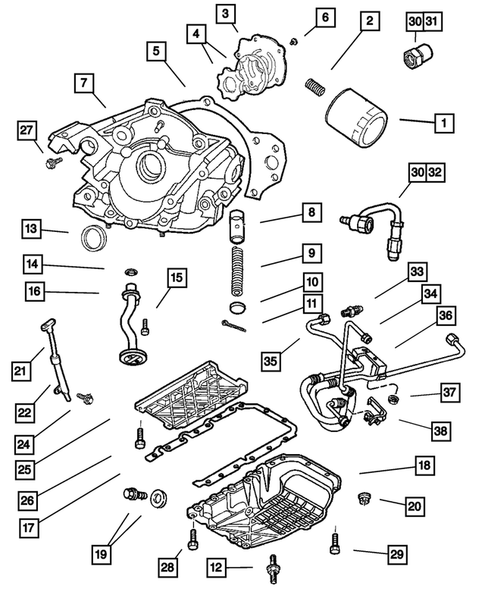

Engine Oiling for 2001 Chrysler 300M
No.
Part # / Description / Price
Price
N/A
Engine Oil Indicator Tube O Ring
Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
1
Engine Oil Filter Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: See Note. [3/4-16] With Engine Production Part Number 04892603AA Or 04892480AA
MSRP $11.15
$7.98
MSRP $11.15
$7.98
2
Oil Filter Connector Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: 3/4-16-2A
MSRP $17.00
$12.12
MSRP $17.00
$12.12
4
Oil Pump Rotor Set Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
4
Oil Pump Rotor Set Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
5

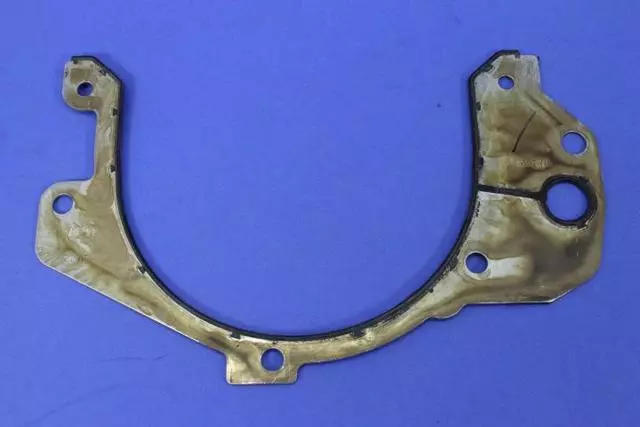

Oil Pump Gasket Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: Body to Block
6
Torx Bolt, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: M6X1.00X18.00. Oil Pump Cover To Front Timing Case Cover
7
Engine Oil Pump Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
8
Oil Pressure Relief Valve Plunger Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
9
Oil Pressure Relief Valve Spring Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
10

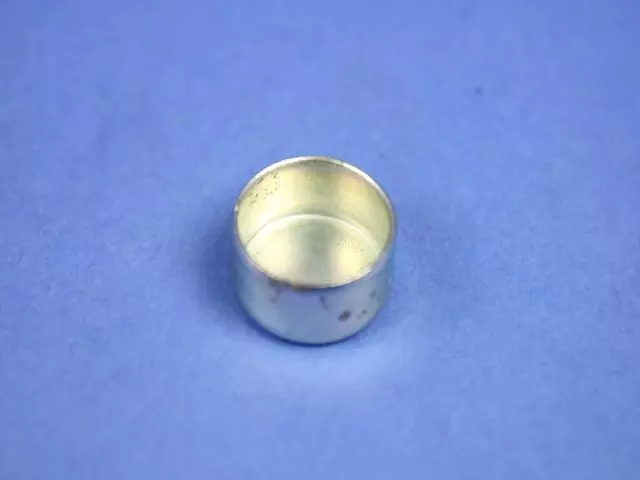

Oil Pressure Relief Valve Cap Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
12

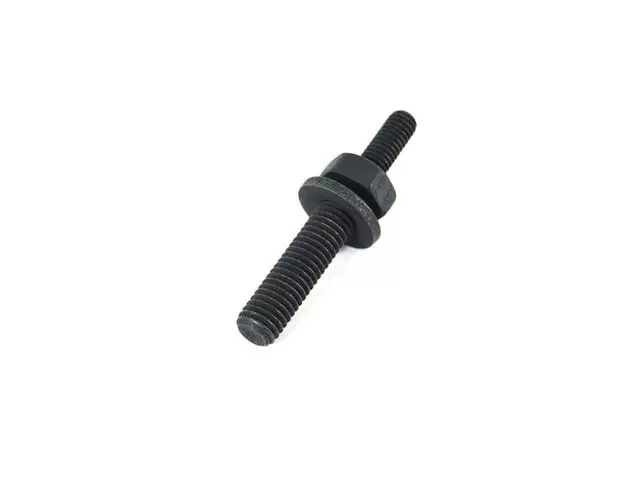

Stud Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: M8x. m8x1.25/m6x1.00x53.50
13
Crankshaft Oil Seal Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: Front
MSRP $26.25
$18.90
MSRP $26.25
$18.90
14
Oil Pick Up Tube Seal Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
MSRP $10.85
$7.74
MSRP $10.85
$7.74
15
Hex Head Locking Bolt, Mounting Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: M8X1.25X25.25. Engine Oil Pick Up Tube To Engine Oil Pump
MSRP $11.00
$7.86
MSRP $11.00
$7.86
16

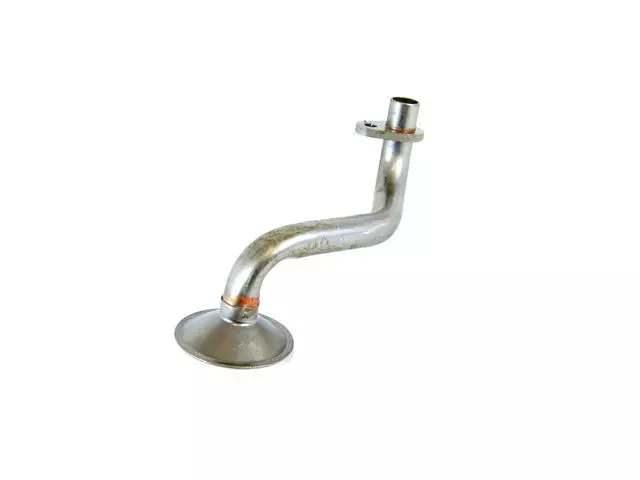

Oil Pickup Tube Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: w/Strainer
17
Oil Pan Gasket Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
18
Oil Pan Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: Heavy duty cooling
18
Oil Pan Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
19
Oil Drain Plug Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: [M18 x 1.0]. [M14x1.50x21.50]. Used Up To 05/22/2020. -NAM ( with Out Mexico).
MSRP $14.45
$10.20
MSRP $14.45
$10.20
20
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: M6X1.00. Exhaust Manifold Heat Shield And Engine Oil Indicator Tube To Exhaust Manifold
MSRP $7.80
$5.46
MSRP $7.80
$5.46
20
M6x1.0x6 Lock Nut, Stop Lamp Switch Bracket Mounting Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: Manual Latch. Stop Lamp Switch Mounting Bracket. Reservoir Mounting. Hex Flange Locking Coller Tube Attach. Oil Pan Attaching. Upto and Including 07-04-00. Up To 07-04-00. Brake Pedal Sensor Mounting.
21
Engine Oil Level Indicator Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
MSRP $26.80
$19.08
MSRP $26.80
$19.08
22
Engine Oil Indicator Tube Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
24
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: M8X1.25X20.00. Balance Shaft Assembly To Cylinder Block
MSRP $8.10
$5.82
MSRP $8.10
$5.82
25
Windage Tray Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
25
Windage Tray Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
26
Bearing Cap Bolt, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: [M8X1.25X105.00]. Main Bearing Cap To Engine Block
26
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: m8x1.25x105.00
27
Hex Head Screw And Washer, Mounting Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: M8x1.25x40. Tensioner Arm Pivot To Cylinder Block
MSRP $7.45
$5.28
MSRP $7.45
$5.28
28
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: M8x35. Oil Pan To Cylinder Block
29
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: M6X1.00X23.00. Oil Pan To Rear Retainer
30

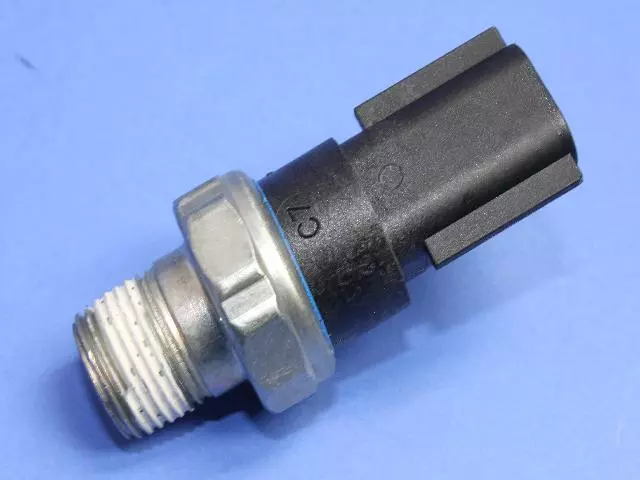

Oil Cooler Pressure Control Valve Package Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: 4792355 Serviced in Valve Pkg
MSRP $55.60
$39.90
MSRP $55.60
$39.90
30
Oil Cooler Pressure Control Valve Package Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: 4792355 Serviced in Valve Pkg
30
Oil Cooler Pressure Control Valve Package Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: 4792355 Serviced in Valve Pkg
33
Oil Cooler Return Line At Oil Pan Fitting Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
34

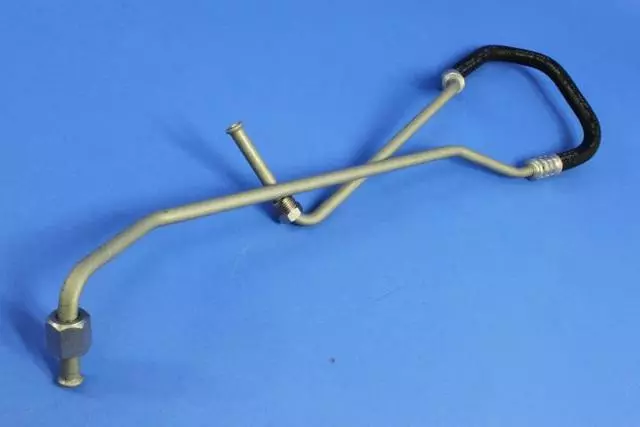

Oil Cooler Supply Line Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
34
Oil Cooler Supply Line Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
35
Oil Cooler Return Line Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
35
Oil Cooler Return Line Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
36
Oil Cooler Tube Bracket Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
37
Hex Nut-coned Washer Nut And Washer Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: M6 x 1.00. Rear Cargo Bin Attaching
MSRP $7.80
$5.46
MSRP $7.80
$5.46
