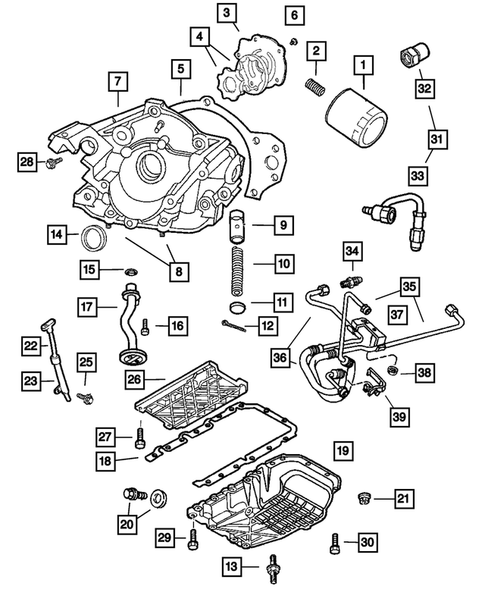

Engine Oiling for 2003 Chrysler 300M
No.
Part # / Description / Price
Price
N/A
Engine Oil Indicator Tube O Ring
Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE.
1
Engine Oil Filter Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
Description: See Note. [3/4-16] With Engine Production Part Number 04892603AA Or 04892480AA
MSRP $11.15
$7.98
MSRP $11.15
$7.98
2
MSRP $17.00
$12.12
4
Oil Pump Rotor Set Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. ALL V6 ENGINES.
4
Oil Pump Rotor Set Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE.
6
Torx Bolt, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
Description: M6X1.00X18.00. Oil Pump Cover To Front Timing Case Cover
9
Oil Pressure Relief Valve Plunger Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
10
Oil Pressure Relief Valve Spring Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
16
Hex Head Locking Bolt, Mounting Mopar
Mopar Description: M8X1.25X25.25. Engine Oil Pick Up Tube To Engine Oil Pump
MSRP $11.00
$7.86
MSRP $11.00
$7.86
20
Oil Drain Plug Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
Description: [M18 x 1.0]. [M14x1.50x21.50]. Used Up To 05/22/2020. -NAM ( with Out Mexico).
MSRP $14.45
$10.20
MSRP $14.45
$10.20
21
Hex Flange Lock Nut, Mounting Mopar
Mopar Description: M6X1.00. Exhaust Manifold Heat Shield And Engine Oil Indicator Tube To Exhaust Manifold
MSRP $7.80
$5.46
MSRP $7.80
$5.46
21
M6x1.0x6 Lock Nut, Stop Lamp Switch Bracket Mounting Mopar
Mopar Description: Manual Latch. Stop Lamp Switch Mounting Bracket. Reservoir Mounting. Hex Flange Locking Coller Tube Attach. Oil Pan Attaching. Upto and Including 07-04-00. Up To 07-04-00. Brake Pedal Sensor Mounting.
27
Bearing Cap Bolt, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
Description: [M8X1.25X105.00]. Main Bearing Cap To Engine Block
28
Hex Head Screw And Washer, Mounting Mopar
Mopar Description: M8x1.25x40. Tensioner Arm Pivot To Cylinder Block
MSRP $7.45
$5.28
MSRP $7.45
$5.28
29
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
Description: M8x35. Oil Pan To Cylinder Block
31
Oil Cooler Pressure Control Valve Package Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
Description: 4792355 Serviced in Valve Pkg
MSRP $55.60
$39.90
MSRP $55.60
$39.90
38
Hex Nut-coned Washer Nut And Washer Mopar
Mopar Description: M6 x 1.00. Rear Cargo Bin Attaching
MSRP $7.80
$5.46
MSRP $7.80
$5.46
